A drawing can tell you a lot about a piece of architectural metalwork. It can show dimensions, gauges, bends, joint locations and attachment details. What it cannot show is how a clear anodized aluminum column cover will actually look on the building at 4 p.m., or whether that blackened steel finish reads as warm or cold next to the wood paneling.

That is the job of a mockup.

A mockup is like a dress rehearsal before opening night. Every problem you find in rehearsal is one the audience never sees. Every problem you miss shows up in front of the whole crowd, and in construction, the crowd includes the owner, the architect and everyone signing change orders.

What Is an Architectural Metals Mockup?

A mockup is a physical sample of the finished work, built before full production begins. It can be as simple as a single finished panel or as involved as a full-size section of a feature wall, complete with joints, reveals and attachments.  It can be either a stand-alone piece of metal, or it can be integrated with the surrounding finishes.

Common types include:

• Finish samples showing the actual material, color, sheen and grain direction
• Corner and joint samples showing how pieces meet, overlap or align
• Full-size component mockups such as one complete column cover or one elevator surround
• In-place mockups installed in the building, where they can be viewed under real lighting and next to adjacent materials

Some projects specify mockups in the contract documents. Others never mention them. Either way, the decision to build one should be based on risk, not habit.

Why Drawings and Small Samples Are Not Always Enough

Shop drawings are essential. They establish what will be built and give every trade a common reference. But they are two-dimensional, and architectural metal is very much a three-dimensional, light-reflecting material.

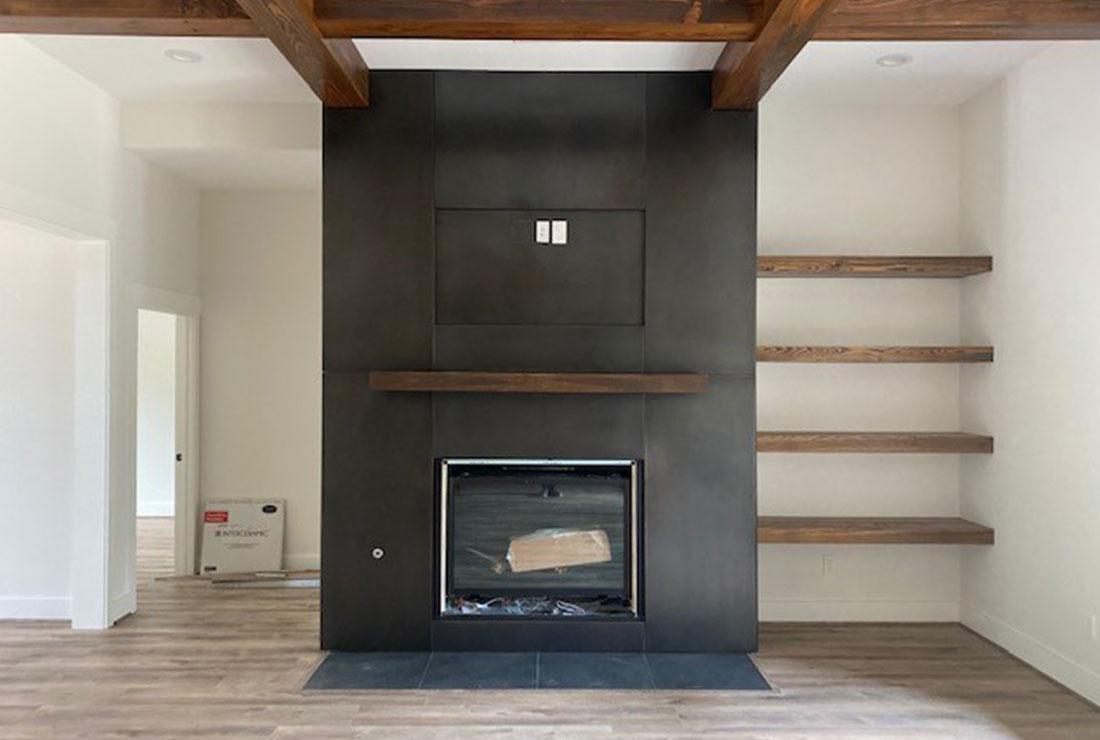

A two-inch finish chip on a sample board can look very different from a ten-foot panel. Directional finishes such as brushed stainless steel can appear lighter or darker depending on the angle of view and the direction of the grain. Living finishes like copper, brass and blackened steel naturally vary from piece to piece. Even painted and powder-coated finishes can shift in appearance under different lighting.

Then there is fit. A drawing can show a clean reveal between a metal panel and a glass wall. A mockup shows whether that reveal still looks clean after the real-world tolerances of drywall, framing and glazing have been absorbed.

What a Mockup Catches

Here are some of the issues mockups routinely uncover before they become expensive:

• A finish that looks right on a sample but too dark, too shiny or too uneven at full scale
• A grain direction that should run vertically instead of horizontally
• Joint widths that look too heavy or too thin in person
• Fastener locations that are visible from a key viewing angle
• Conflicts with lighting, outlets, controls or adjacent millwork
• Oil canning on wide, flat panels
• Transitions to other materials that need a different closure or trim detail

Each of those items is relatively easy to fix in the mockup stage. Fixing them after fifty pieces are fabricated, finished and installed is a very different conversation.

The Math Behind the Headline

The title of this post is not a precise quote. Every project is different, and mockup costs range widely depending on size and complexity. But the basic math holds up.

Consider a hotel lobby with twenty matching column covers in a specialty finish. If the owner rejects the finish after installation, the cost includes new material, new finishing, new fabrication labor, removal, reinstallation, protection of surrounding work and schedule delay. On a high-profile space, that can easily reach tens of thousands of dollars.

Now compare that to the cost of fabricating and finishing one column cover, or even one section of one, for approval before production. The mockup is a small, predictable cost. The rejection is a large, unpredictable one.

The true cost of a mistake is rarely just the material. It is the labor, the delay and the ripple effect on every trade waiting for the work to be finished.

When a Mockup Is Worth It

Not every project needs a mockup. A standard brake metal closure in a common prefinished aluminum color probably does not justify one.

A mockup is usually worth considering when the project includes:

• Specialty or living finishes such as copper, brass, Corten or blackened steel
• Large areas of directional finish, like brushed stainless feature walls
• Repetitive components where one mistake gets multiplied many times
• High-visibility areas such as lobbies, elevator banks, reception desks and storefronts
• Complex curves or unusual geometry
• Owners or designers who have not worked with the material before
• New details that have not been built before by anyone on the team

If you are not sure whether a mockup makes sense, that question is a good one to raise during design-assist. Bringing the fabricator in early helps the team decide where a mockup will actually reduce risk.

Getting the Most From a Mockup

A mockup only helps if the right people review it at the right time. A few practical tips:

• Schedule it early. A mockup approved two days before production does not leave much room to make changes.
• View it in real conditions. If possible, review it in the actual space, under the actual lighting, next to the actual adjacent materials.
• Get the decision-makers there. The owner, architect and GC should all see the actual mockup, and not just a photo of it.
• Document the approval. Photograph it, note any changes and keep the approved mockup on site or in the shop as the standard for production.
• Treat it as the benchmark. Once approved, the mockup becomes the reference for finish consistency across every piece that follows.

Small Investment, Big Peace of Mind

Mockups are not about doubting the drawings or the fabricator. They are about giving everyone on the project a shared, physical picture of the finished work before committing to full production.

Astro Sheet Metal has fabricated custom architectural metals in the Dallas-Fort Worth area since 1967. Our turnkey services include design assistance, submittal and shop drawings, mockups, fabrication and installation, and we also provide fabrication-only services for brake metal and custom components.

For assistance with an architectural metals project in the Dallas-Fort Worth or Austin market, contact Astro Sheet Metal at 972-438-1110 or visit astrosheetmetal.com/contact

Drive south from Dallas toward Red Oak and it becomes clear that North Texas is building a new kind of industrial landscape.

DataBank is developing a 292-acre campus planned for as many as eight two-story data centers, with up to 3.4 million square feet of building space and 480 megawatts of critical IT capacity. In April 2026, the company announced $2 billion in financing for the first three facilities, which will provide approximately 600,000 square feet and 180 megawatts of capacity.

Nearby, Compass Datacenters is also developing a large Red Oak campus designed to support more than 350 megawatts of IT load. Together with other projects throughout the Metroplex, these campuses are turning the southern Dallas area into an important center for digital infrastructure.

The buildings may ultimately be filled with servers, cooling systems and electrical equipment, but they still depend on many of the same architectural metal components found throughout commercial construction. Wall panels, flashings, copings, equipment screens, soffits, trim, column covers and custom transition pieces all help protect the building, conceal infrastructure and produce a finished appearance.

On a data center project, however, the scale, repetition and schedule make precision especially important.

Data Centers Are More Than Rooms Full of Servers

A data center campus typically includes much more than the secured data halls where computing equipment is located.

There may also be administrative offices, security buildings, loading and service areas, mechanical yards, electrical equipment areas, employee spaces and operations facilities. Texas Department of Licensing and Regulation records, for example, describe a separate 50,000-square-foot operations facility supporting the Compass campus in Red Oak.

Architectural metal can appear throughout these different areas, including:

• Exterior metal wall panels and trim
• Roof copings, fascias and edge metal
• Flashings around doors, louvers and penetrations
• Equipment and generator-yard screens
• Canopies, soffits and entrance features
• Interior wall panels and column covers
• Corner guards and wall protection
• Custom access panels and removable enclosures
• Metal trim integrated with glazing and millwork
• Transition pieces between dissimilar materials

None of these components operate the servers. However, they contribute to the protection, maintainability, and appearance of the buildings that house them.

Repetition Makes Accuracy More Important

Many data centers are built around standardized designs that can be repeated across several buildings or phases.

Compass describes its approach as a consistent, scalable design intended to improve control over cost, quality, schedule and long-term operation. Standardization helps data center developers expand quickly, but it also means fabrication errors can be repeated on a very large scale.

One incorrect dimension on a single piece of brake metal is a problem. The same incorrect dimension repeated across hundreds of pieces can affect an entire elevation or delay multiple installation crews.

That is why accurate drawings, clear profile details and good quality-control procedures matter. Before production begins, the fabricator needs to know:

• The required material and gauge
• The exact profile dimensions
• Which face will be exposed
• The direction of the finished surface
• How pieces will overlap or connect
• Where joints and expansion conditions occur
• How the metal interfaces with adjacent trades
• Whether pieces must be produced or packaged in a particular sequence

A good fabricator does not simply run every dimension exactly as received without review. When a profile, finish orientation or attachment detail appears unclear, asking a question before fabrication is much less expensive than discovering the issue after several hundred pieces reach the site.

The Exterior Envelope Has Little Room for Improvisation

Data centers contain valuable equipment that must operate continuously. That makes management of the exterior envelope a serious concern.

Architectural sheet metal is frequently used at the transitions where water intrusion problems begin: parapets, wall terminations, roof edges, penetrations, canopies, door openings and intersections between different cladding materials.

The metal itself is only one part of the overall envelope system. Membranes, sealants, substrates, insulation and adjacent wall systems must all work together. Nevertheless, a coping with the wrong dimensions or a flashing that does not properly engage the surrounding construction can compromise an otherwise carefully designed assembly.

Field conditions are not always identical to the architectural drawings. Concrete, masonry, framing and other substrates carry normal construction tolerances. By the time architectural metal is installed, the fabricator may be asked to absorb the accumulated differences created by several preceding trades.

Field verification can therefore be especially important at transitions and irregular conditions. Astro’s existing coordination guidance notes that architectural metals frequently arrive late in the construction sequence and look their best when the fabricator is allowed to measure the completed conditions before producing custom components.

Hospitality and entertainment spaces have to do more than accommodate people. They have to create an experience.

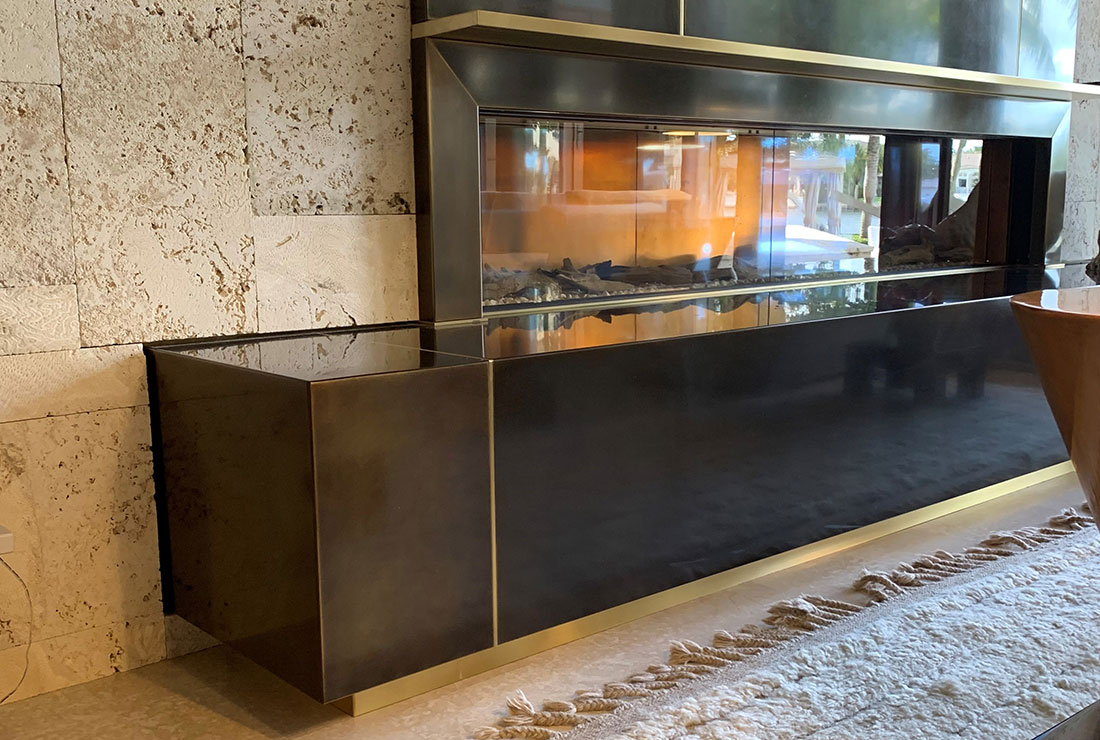

A downtown Dallas hotel lobby may communicate luxury through polished surfaces, precise lines and dramatic lighting. A restaurant in the Fort Worth Stockyards may use darker metals, exposed connections and handcrafted details to reinforce a Western identity. The visual languages are different, but architectural metal can play a central role in both.

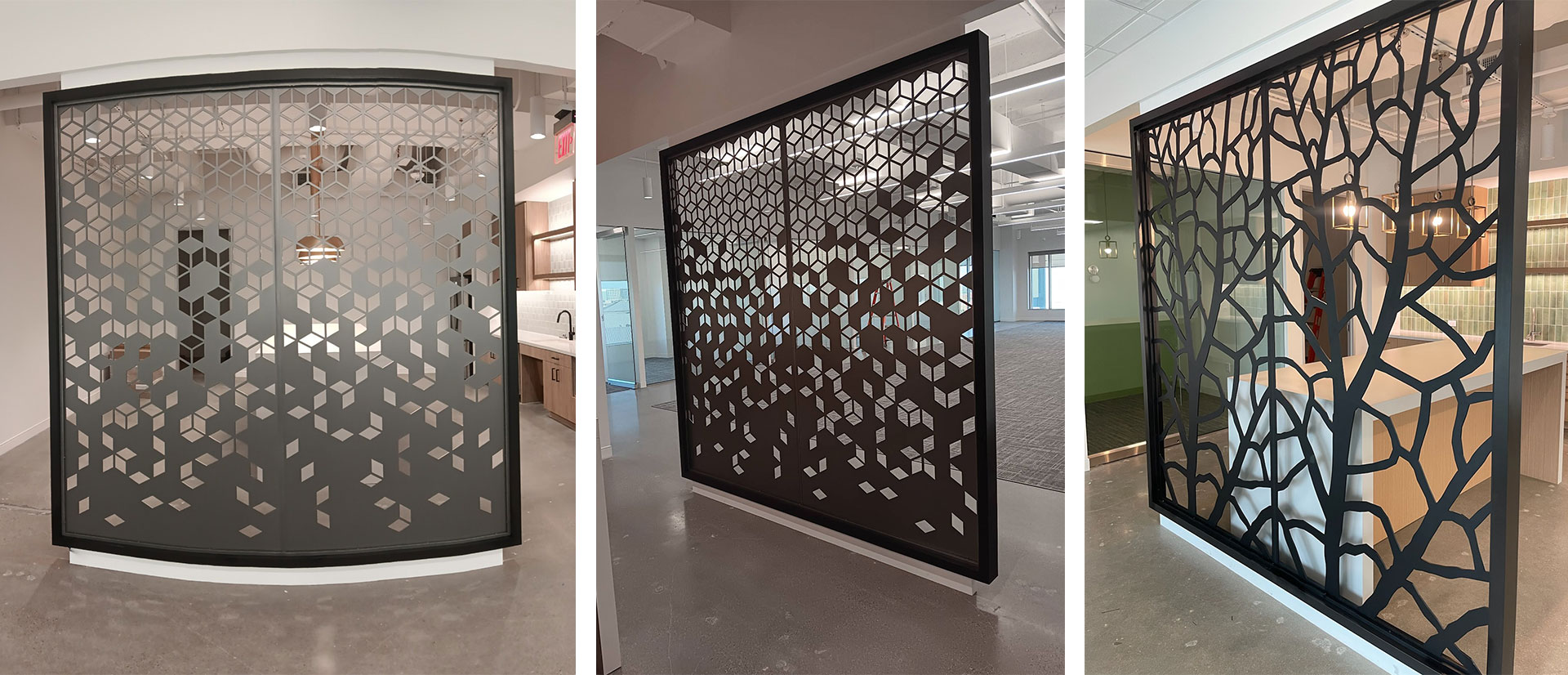

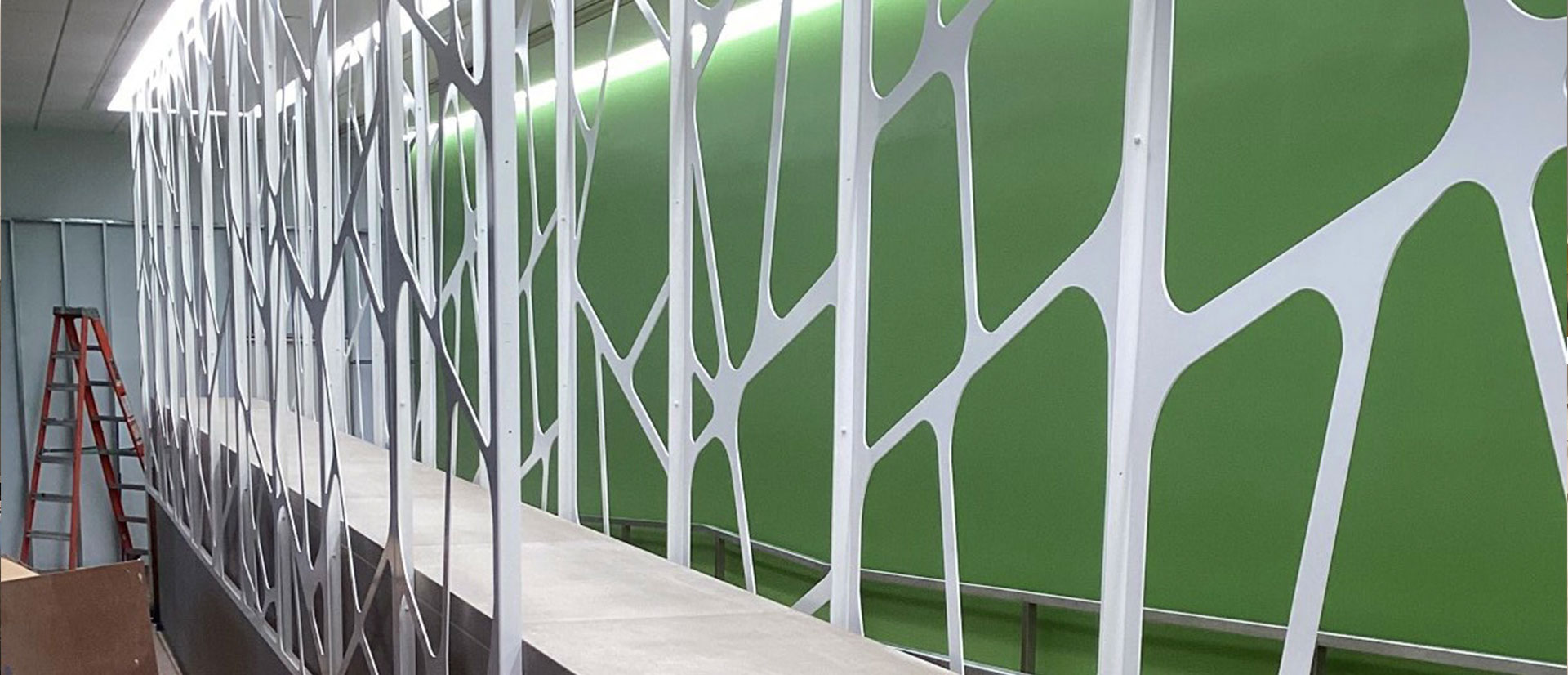

Metal is increasingly used throughout hotels, restaurants, music venues, event spaces and mixed-use developments because it combines durability with enormous design flexibility. It can appear sleek and contemporary, warm and refined, industrial and unfinished, or intentionally aged.

That flexibility is especially useful in North Texas, where hospitality design ranges from modern urban towers to carefully renovated historic buildings.

Dallas-Fort Worth is one construction market, but it does not always operate like one small geographic area.

A project in downtown Dallas may require coordination with a glazing contractor based in Carrollton, a general contractor headquartered in Fort Worth, and installers traveling between jobs in Frisco, Arlington and Irving. Add traffic, restricted delivery hours, limited staging areas and shifting schedules, and moving a relatively straightforward metal order across the Metroplex can become a project of its own.

That is one reason a centrally located fabrication partner can be valuable.

Astro Sheet Metal operates its fabrication shop in Grand Prairie, between Dallas and Fort Worth and within practical reach of construction activity throughout the Metroplex. Customers can pick up fabrication-only orders from the shop, arrange delivery to their own facility, or have material delivered directly to a jobsite.

Location alone does not guarantee good service. Accuracy, communication and shop capacity still matter. However, when those qualities are combined with proximity to the work, contractors have more options when schedules change, and field conditions create surprises.

The Metroplex Creates a Delivery Challenge

North Texas construction activity is spread across a large area.

Commercial projects are active not only in central Dallas and Fort Worth, but also in Arlington, Irving, Frisco, McKinney, Denton and other growing communities. Astro’s existing market discussion describes strong demand across this wide geographic area, with healthcare, hospitality, mixed-use and commercial construction all active at the same time.

For a subcontractor managing several jobs, that geographic spread can create practical problems.

A crew may need brake metal in Dallas on Tuesday, replacement trim in Fort Worth on Wednesday, and additional pieces for a project in Frisco before the end of the week. Material coming from a distant supplier may be tied to freight schedules that do not reflect what is happening in the field.

A local fabrication relationship provides alternatives. Depending on the order and the fabricator’s capacity, material may be picked up by the installing contractor, sent with a local delivery, or routed directly to the project.

That flexibility can help keep a relatively small metal need from becoming a larger scheduling issue.

Every general contractor knows the pressure. Bid day arrives, the numbers come in, and the owner wants the project delivered at the budget they approved. The lowest number in each scope gets circled. The job gets awarded. And somewhere between bid day and substantial completion, a few of those lowest bids reveal why they were the lowest.

Architectural metal is one of the scopes where the gap between bid-day savings and project-day reality shows up most often. Metal is a precision product, fabricated to specific dimensions, specific tolerances, and specific finish standards.  When any of those items does not meet the mark, a shim or a tube of caulking often will not fix the problem.  More often than not, it becomes a reorder, a delay, and a conversation about who is paying for it.

That is not to say that competitive bidding and cost discipline are not valuable.  Both are legitimate and necessary. However, buyers should take the time to understand what is actually in a metals bid (and what might not be) before the number gets circled.

What the Lowest Bid Is Usually Leaving Out

Low metals bids do not come from nowhere. They come from specific decisions about how the work will be priced and executed. Here are the most common ones.

Lighter gauge than the spec requires. Gauge is one of the easiest places to shave cost on a metals bid. The difference between .125” and .063” aluminum is meaningful in terms of material cost across a large order. A fabricator who defaults to lighter material due to a lack of specificity on the architectural plans can come in below competitors while delivering material that performs differently than what was expected.

The submittal drawings will tell the tale.  A fabricator who bids light on gauge will eventually have to submit shop drawings showing the gauge they are proposing. The time to catch that is during submittal review, not when the material arrives on site.

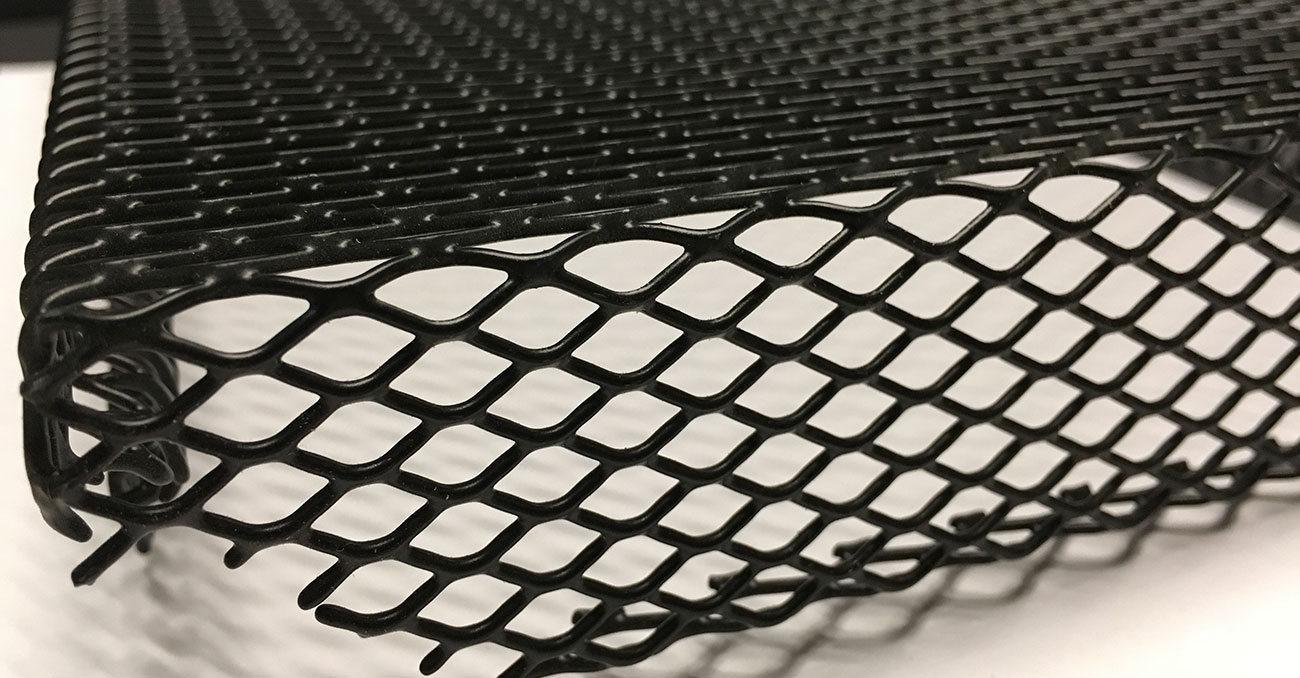

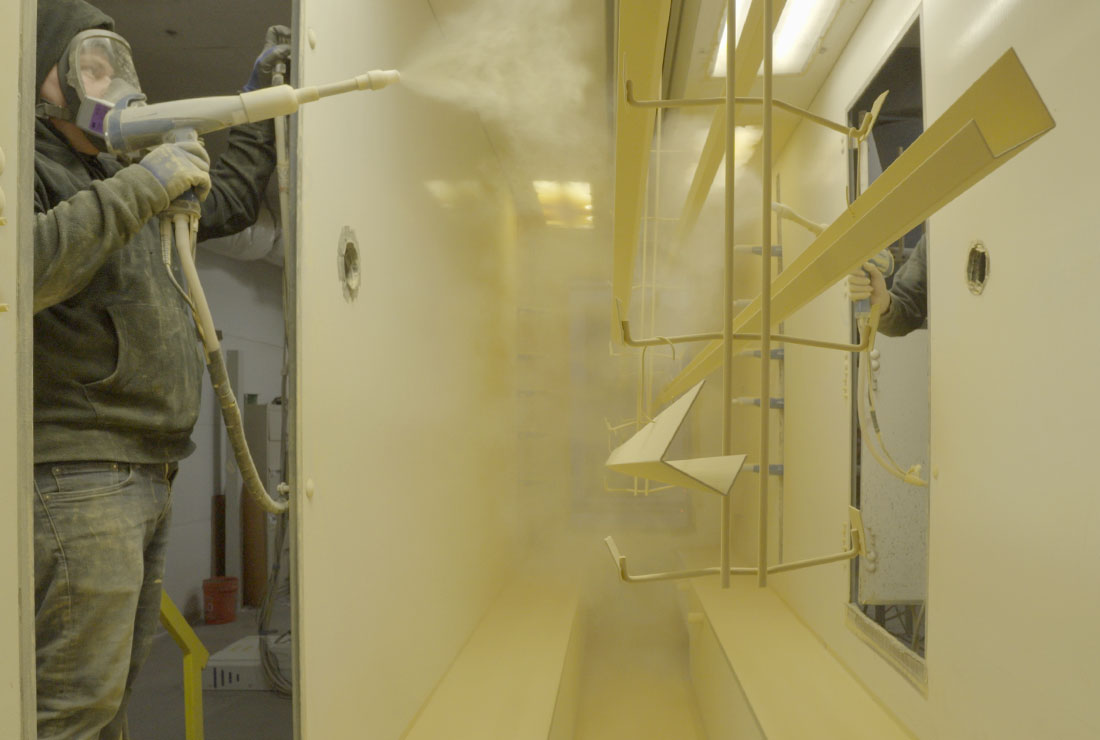

Substituted finish system. The difference between a 70% PVDF coating and a standard polyester paint is meaningful in both cost and long-term performance. A fabricator who substitutes a polyester system where PVDF was specified can reduce their cost significantly, and even if their paint technically complies with the written spec even if it does not match the design intent.

Again, the submittal is the checkpoint. It is also helpful to have your fabricator submit a physical finish sample for approval before production begins, so that substitutions can be caught before production ramps up.

Reduced quality control. Quality control steps cost time and money. A fabricator who skips or shortcuts these processes can produce and ship faster, which reduces their cost. The transfer of risk to the general contractor happens quietly, in the form of orders that occasionally arrive wrong and require reorders, revisions, or field modifications.

This one is harder to see in a bid than gauge or finish. It shows up more profoundly in the fabricator’s track record.  Does the fabricator have a reputation for delivering thorough submittal drawings and accurate orders in a timely manner?  References from comparable projects are the most useful tool for assessing quality and consistency before award.

Compressed lead times that are not actually achievable. A fabricator who quotes an aggressive lead time to win the bid and then delivers late has transferred a scheduling cost to the general contractor that was not visible on bid day. In a market as active as DFW right now, a shop that is already running at capacity and quotes a two-week lead time to win the order may have known on bid day that two weeks was not realistic.

The mitigation is to ask specifically how the fabricator plans to hit the quoted lead time given their current workload. A fabricator who can answer that question specifically, with reference to their actual capacity, is different from one who gives a number and hopes for the best.

The Math Behind the Hidden Costs

It is worth taking a moment to understand the true cost of making a wrong order, because the numbers are instructive.

Consider a glazing contractor who has a crew on site to install storefront brake metal. The material arrives and a portion of it is wrong:  wrong leg length, finish on the wrong side, or some other issue that cannot be worked around in the field. The crew cannot complete the installation. Call it half a day of crew downtime while the problem is identified and a reorder is placed. Then the reorder takes a few days to arrive. The crew comes back to finish.

The direct cost of that scenario (crew downtime, return trip, expedite charges on the reorder) can easily run $2,000 to $5,000 depending on crew size and travel. On a brake metal order that might have been $800 cheaper from the low bidder, the math inverts quickly.

And that is only the direct cost.  It does not include the general contractor’s time managing the problem, the downstream schedule impact on other trades, or the erosion of the relationship with the glazier who had to make the call explaining why their installation was delayed.

How Experienced General Contractors Evaluate Metal Bids

The general contractor who consistently get good outcomes on metals scopes tend to approach bid evaluation the same way: price is one input among several, not the only input.

The evaluation framework that works looks something like this:

Is this fabricator set up to do this specific scope? Equipment, experience with comparable projects, and capacity to handle the volume are baseline qualifications that price does not address.

What does their track record look like on similar work? References from comparable projects, with specific questions about accuracy, lead time reliability, and problem solving, provide information that a bid number does not.

Is the bid apples-to-apples? Look at details like the gauge, the finish, and the lead time.  Does the lower bid actually cover the same scope of work as the higher bid?

What’s the cost of failure for this specific scope? Considering the fact that architectural metals are often one of the last items installed on a construction site, long after any slack time in the schedule has been eaten up by the other trades, ask yourself:  If this metal arrives wrong, how will it affect the winding down of this project?  Those stakes can help you decide how much weight to give to price versus track record in the evaluation.

The Relationship Premium

There’s one more cost that doesn’t show up in any line item but that experienced general contractors account for: the value of a vendor relationship that works.

A fabricator who knows your business, processes your orders accurately, communicates proactively when something changes, and shows up for you when a schedule gets compressed is worth a premium over the spot market. That premium shows up in orders that arrive right the first time, in lead times that are honest rather than optimistic, and in the problem-solving that happens when a job throws an inevitable curveball.

The lowest bid on bid day is a number. A reliable fabricator relationship is an asset that pays dividends on every job it touches. Experienced GCs who have built those relationships with their architectural metal partners tend to keep them, even when a new bidder comes in lower, because they have done the math on what the relationship is actually worth.

Astro Sheet Metal has been building those relationships with general contractors across the Dallas-Fort Worth and Austin markets for nearly 60 years. If you are evaluating metal fabricators for an upcoming project and want to understand what Astro brings to the table beyond the bid number, reach out to us at 972-438-1110 or at astrosheetmetal.com/contact.

North Texas is known for new construction, but some of the region’s most distinctive commercial projects begin with buildings that have stood for decades.

Downtown Dallas, Deep Ellum, Fair Park, the Fort Worth Stockyards and older commercial districts throughout the Metroplex contain buildings that were constructed under different standards, modified by multiple owners and repaired with materials that may no longer be available.

When one of these properties is renovated, architectural metal often becomes part of the challenge.

A damaged coping may need to be replaced without rebuilding the entire roof edge. New storefront trim may need to align with an existing profile. A building addition may need metal panels that complement material installed 20 years ago. Interior column covers, elevator surrounds or decorative panels may need to be extended into a renovated area.

These conditions rarely have a simple catalog solution. Matching older architectural metal requires field investigation, careful fabrication and honest expectations about what can—and cannot—be duplicated.

Column covers are one of those scope items that looks deceptively simple on a set of drawings. A few metal panels wrapping a structural column:  How complicated can it be? The answer, as a lot of general contractors have discovered mid-project, is more complicated than it looks.

That is no reason to dread the scope, but it is a reason to think it through the design carefully before the work starts. Column covers done well are clean, durable, and contribute meaningfully to the finished appearance of a lobby, parking structure, retail space, or corridor. Column covers done poorly are expensive to fix and hard to hide. Here is a practical overview of the considerations that make the difference.

Start With the Structural Column — Not the Drawing

The first thing to understand about column covers is that they are installed over real structural columns, which are rarely exactly what the drawings say they are. Columns that are nominally the same size can vary in actual dimension due to concrete pour tolerances, form deflection, and finishing variation. A structural column that is drawn at 18 inches square may measure anywhere from 17¾ to 18¼ inches in the field, and if the column cover is fabricated to the nominal dimension without accounting for that variation, it may not fit cleanly.

The practical implication is that field measurement should drive the fabrication order, not the architectural drawings. For a project with multiple column covers in the same space, it is well worth taking the time to measure each column individually rather than assuming that they are all identical. Finding out that columns three and seven are slightly larger than the rest is useful information before the order goes to the fabricator. Finding it out during installation is a different kind of day.

This measurement conversation should happen before shop drawings are submitted, not during the review process. The fabricator needs accurate field dimensions to produce accurate shop drawings, and inaccurate input produces inaccurate output regardless of how carefully the shop drawings are reviewed.

The Attachment System Is the Critical Detail

How a column cover attaches to the structural column determines almost everything about how the installation goes and how the cover performs over time. There are two primary approaches: a clip system and a direct-attach system. Each has tradeoffs.

Clip systems use a metal track or series of clips attached to the structural column, with the cover panels engaging the clips rather than being directly fastened to the column. This approach accommodates variation in the column dimension, allows for thermal movement, and typically produces a cleaner finished appearance because there are no visible fasteners on the panel face. It also makes panel removal possible for access to mechanical or electrical elements behind the cover if that’s a project requirement.

Direct-attach systems fasten the cover panels directly to the structural column, typically with concealed fasteners at panel joints. This approach is simpler and often less expensive but is less forgiving of column variation and provides less accommodation for thermal movement. For interior applications with controlled temperature environments, this is often an acceptable tradeoff. For exterior column covers or applications with significant temperature swings, the clip and track approach is usually the better engineering choice.

The attachment system needs to be resolved during the shop drawing phase, not improvised in the field. A fabricator who designs the cover and the attachment system together produces a system that installs predictably. One who fabricates panels without a clear attachment strategy produces a field problem.

Some of Astro Sheet Metal’s customers never see the inside of our shop. They place an order, get a delivery, and move on to the next job. That is understandable, as the goal should be for the material to show up right and on time.

But occasionally a customer asks: what actually happens between when I place the order and when the truck pulls up? It’s a fair question. Custom fabrication isn’t magic, but it does involve a set of processes, decisions, and people that most customers do not necessarily see.  What happens inside the shop has a direct bearing on whether the order that arrives is right or wrong, on time or late, clean or damaged.

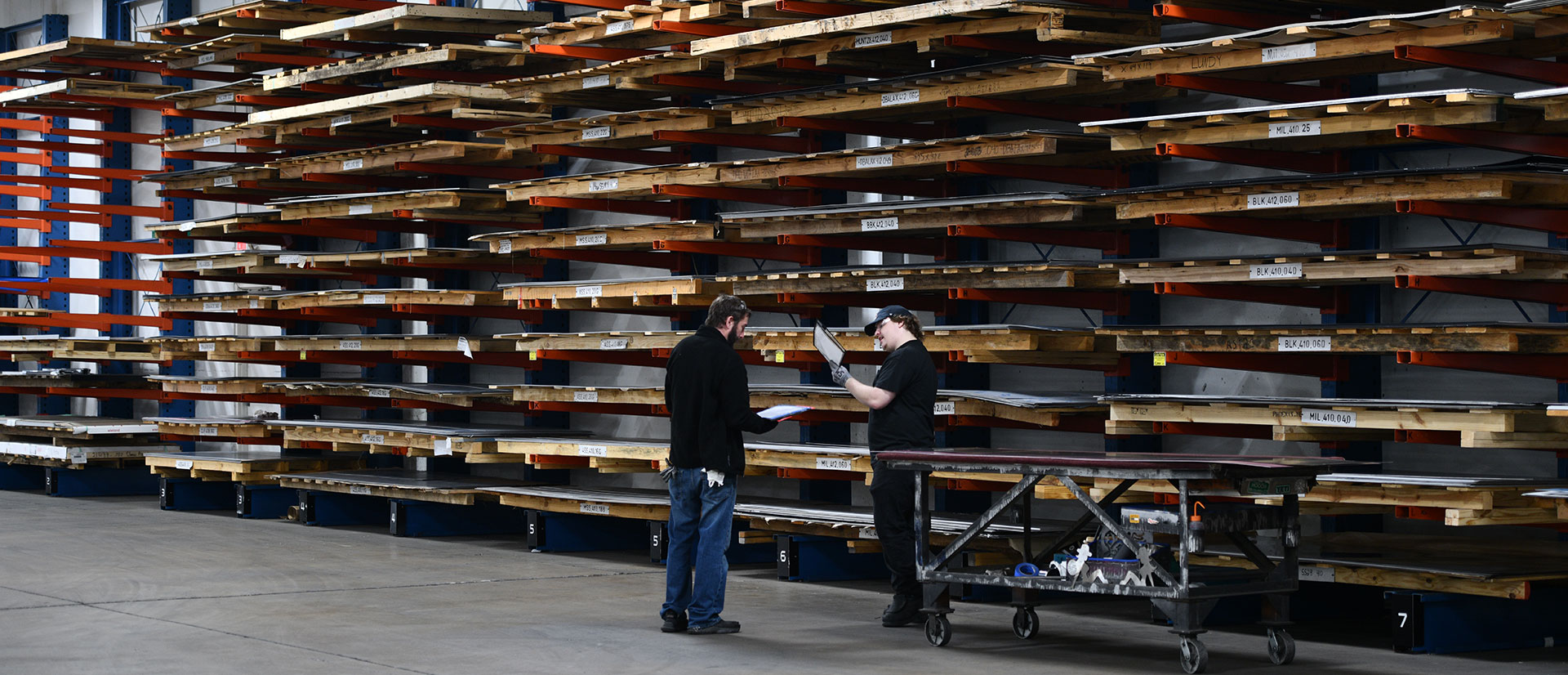

Here’s a look at what a typical day in Astro’s Grand Prairie shop actually looks like.

The Day Begins With Preparation

Our shop foreman arrives ahead of our staff to prepare for the day.  Customer needs and job specifications are considered so each job can be assigned to the fabrication team best suited for it.  Lights and machines are turned on, and a couple of guys arrive early to throw out trash and straighten things up, so that our team can begin working as soon as the day begins.  Our installation teams arrive to get materials and tools loaded up into the company trucks for the day’s installation assignments.  And with a plan in place, our fabricators get to work.  Sometimes customers are planning to pick up expedited brake metals my mid-morning, so there is no time to waste.  The day’s work gets sequenced so that time-critical orders run first, not last.

For a shop producing a high volume of concurrent orders for customers who have their own crews and schedules depending on the material, that kind of intentional sequencing isn’t optional — it’s what keeps the dominoes from falling.

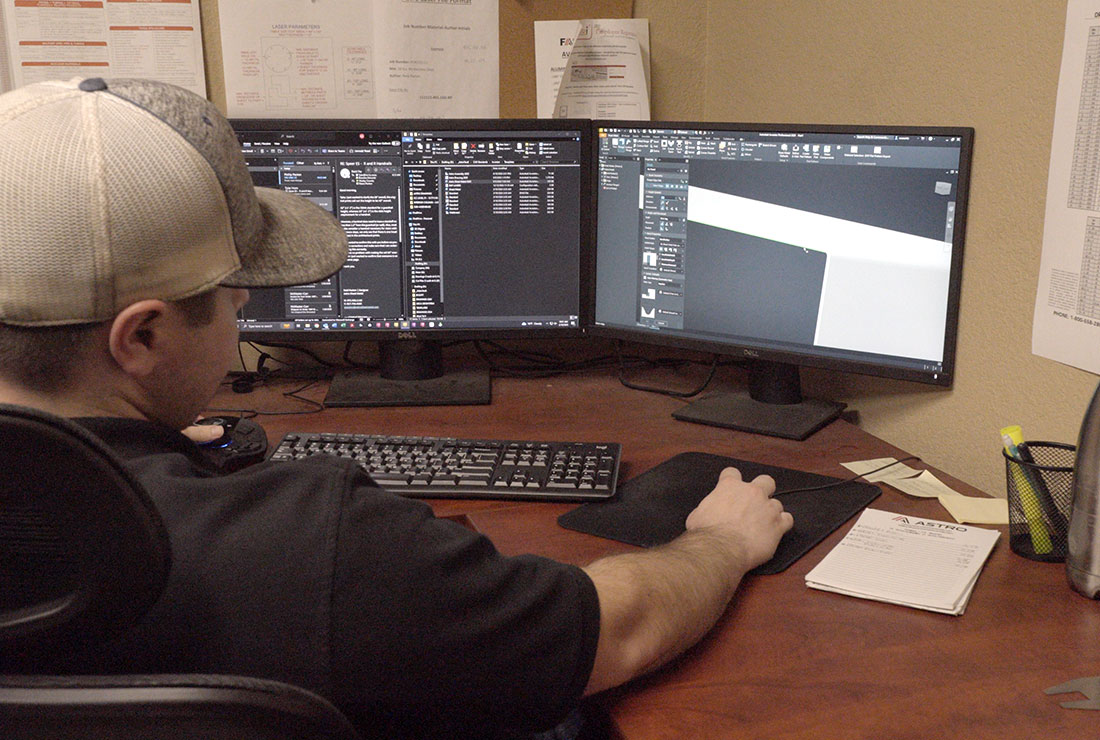

Before anything gets cut, the order has to have all of the information and drawings that the shop needs.  Our estimating and project management teams process incoming orders from phone calls, emails, and web site inquiries and translate them into fabrication-ready work orders. All information gets filled in before the order ever hits the shop floor.

This translation step is where a lot of wrong orders get prevented. When an order comes in with a dimension that doesn’t make sense for the described condition, someone picks up the phone and asks the customer a question before the metal gets cut. It takes a few minutes. It also saves a reorder.

Because we deal with several construction trades, our project managers are well versed in the pertinent lingo of glazing, waterproofing, and drywall trades, among others.  When a glazing contractor calls, for example, our project managers know the difference between a sill pan and a head flashing.  That industry fluency doesn’t come from a training manual. It comes from years of processing orders for the same kinds of customers on the same kinds of jobs.

The Fabrication Floor: Brake Presses, Shears, and Skilled Hands

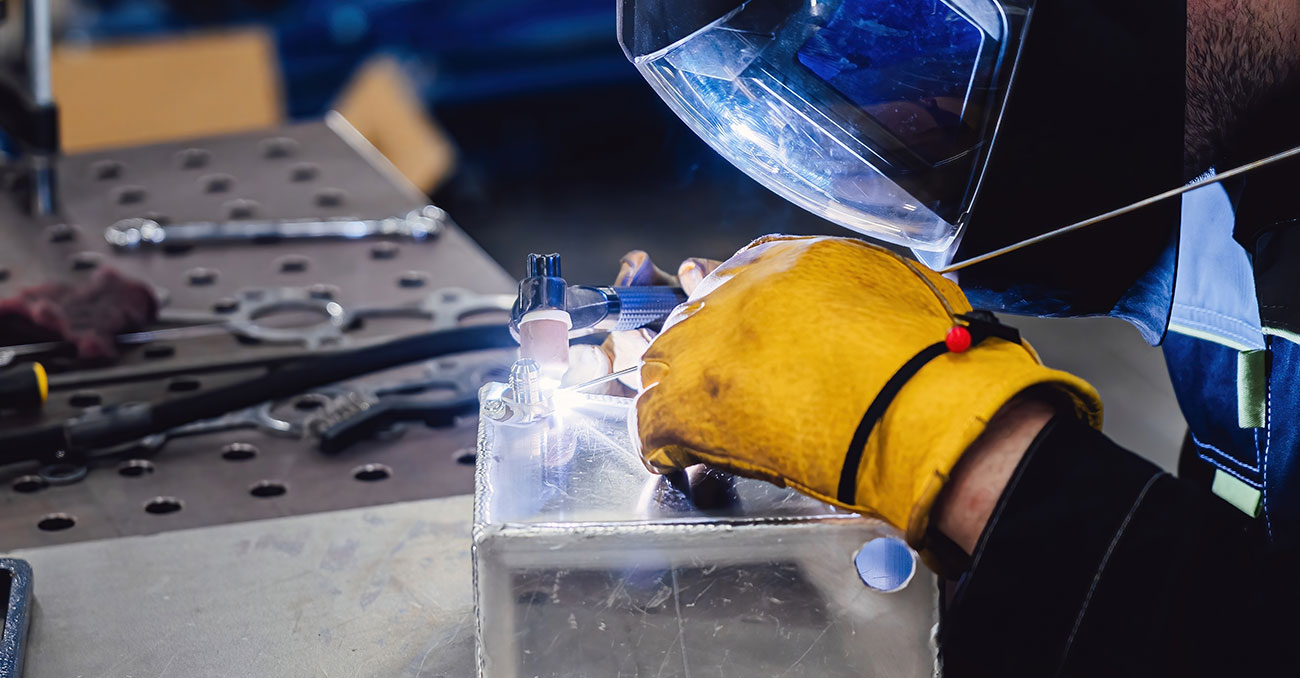

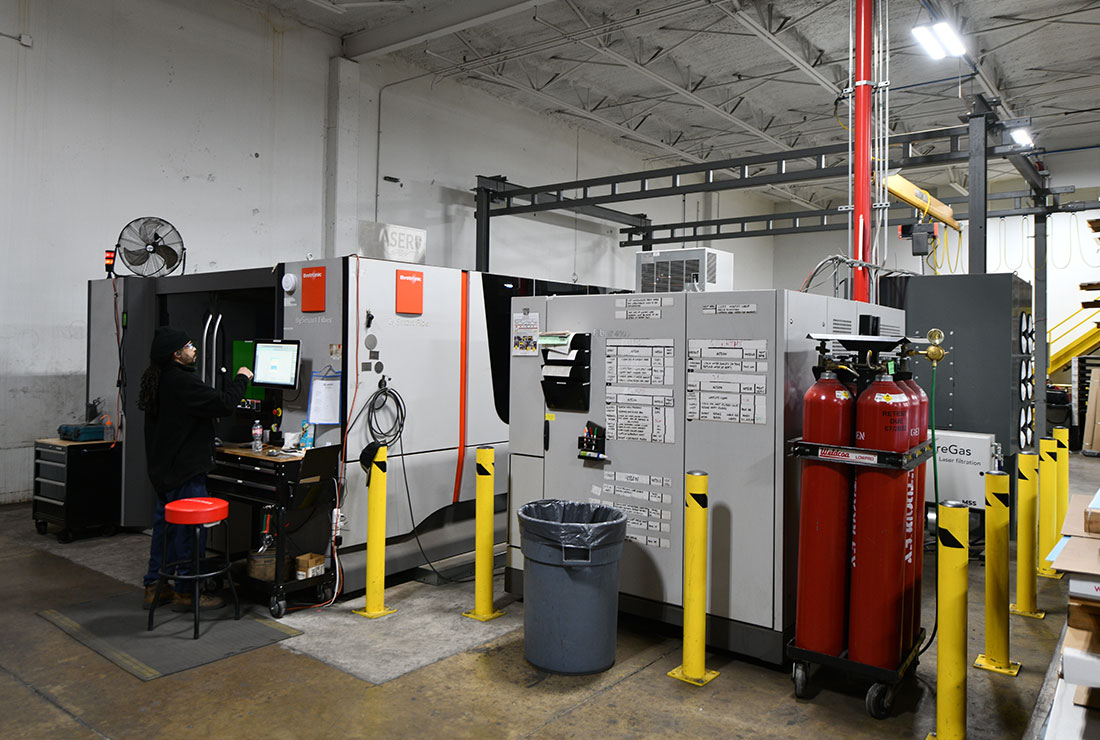

The heart of the shop is the fabrication floor — laser cutting, shears, brake presses, welding stations, and the people who run them.  At Astro, we pride ourselves on cross training our employees.  Rather than one guy standing at a shear for eight hours, our fabricators work in teams and take most orders from start to finish through our shop.  Because of this cross-training, we are never at a standstill because the shear operator called in sick, for example.  It also gives our fabricators a well-rounded education in many facets of metal fabrication.  Of course, some of our people are more geared toward welding difficult assemblies or forming complicated profiles, but in general, our guys move around the shop throughout the work day.

Astro’s fabrication team includes people who have been running brake presses for decades. That experience is central to the quality of the work we produce.  The difference between a piece that comes out right on the first bend and one that requires setup adjustments shows up in both accuracy and throughput.

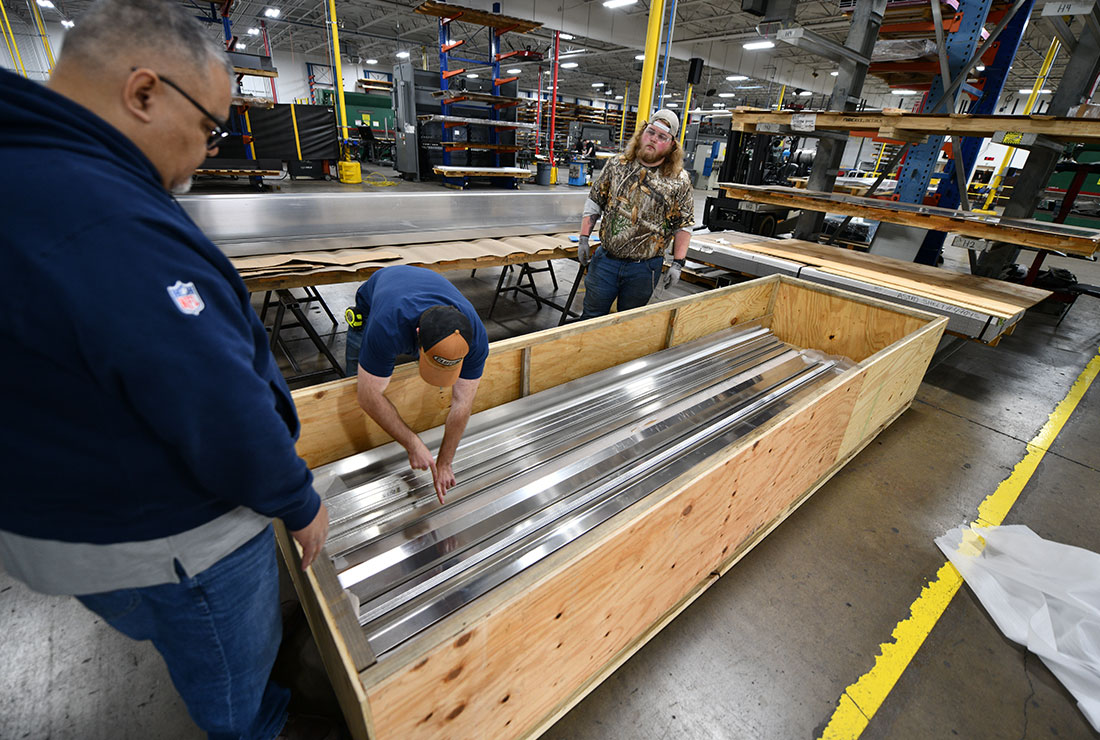

Quality Check: Before It Leaves the Floor

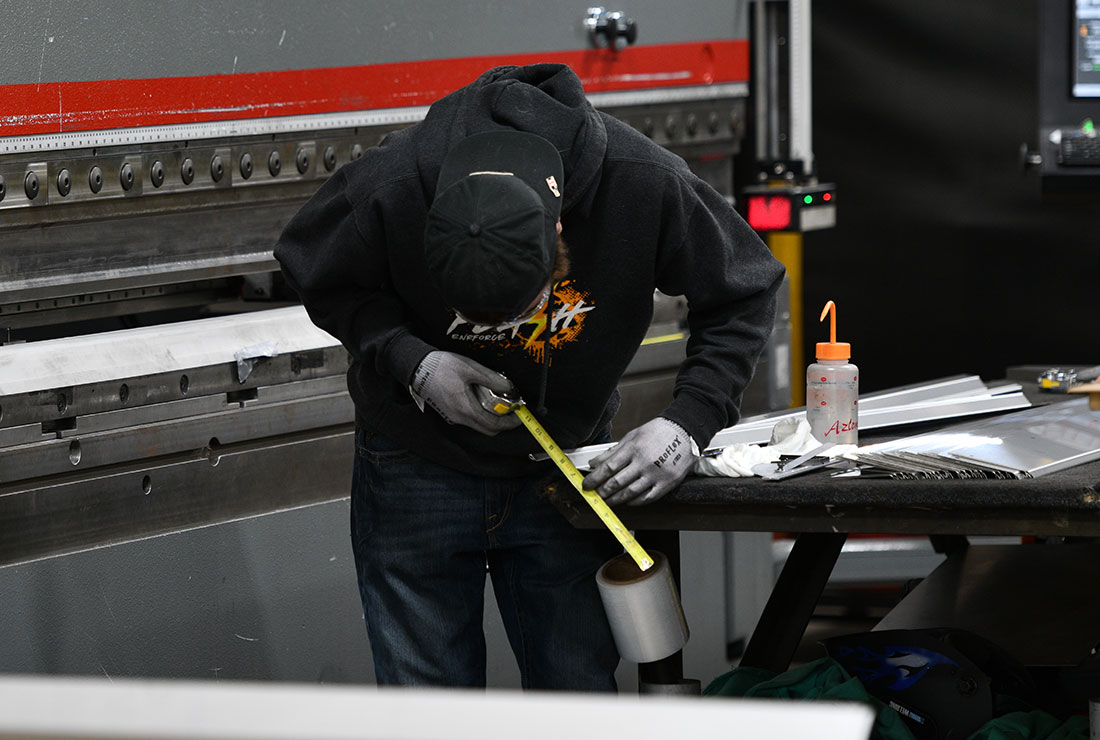

Every order gets checked for accuracy before a customer is called or before the order ships out.  Besides a basic count, the parts are dimensionally inspected, and our quality control people make sure that the finish is on the correct side.  Pieces are also visually inspected to make sure they are cosmetically in excellent shape.  In our line of work, a scratched part is trash!

While we would love to say we are perfect, the truth is that no fabrication operation bats a thousand. However, if we can catch problems before they leave the building, then fixing them becomes a minor problem for us and avoids an issue altogether for our customers.  We know that there is nothing worse than getting all the way to a job site and jockeying for the freight elevator, only to get to the right floor and find that the metal you ordered is not built correctly.  We believe that our customers deserve better than that.

Anyone who has driven through Dallas Fort Worth International Airport lately knows that DFW is in the middle of a major transformation.

The airport’s DFW Forward capital improvement program has grown to approximately $12 billion, with work extending across terminals, roadways, parking facilities, airfield systems and customer spaces. In June 2026, DFW opened nine new and rebuilt gates in Terminal C as part of a complete reconstruction of the airport’s busiest terminal. Meanwhile, construction continues on Terminal F, an approximately $4 billion project planned to ultimately provide 31 gates, expanded international capabilities and a direct walking connection to Terminal D.

Projects of this scale are impressive because of their size. But they are also worth examining in detail.

Modern airport terminals depend on hundreds of architectural elements that most travelers will never consciously notice. Metal wall panels, column covers, ceiling systems, trim, equipment screens, corner guards, copings and other custom-fabricated components help transform an enormous structure into a finished public space.

For a busy glazing or waterproofing subcontractor, a brake metal shop drawing can feel like an unnecessary piece of paper to sign off on and move past. But the shop drawing review is actually one of the most valuable checkpoints in the entire fabrication process. It’s the last moment before metal gets cut and bent, when an error can be caught at zero cost rather than being discovered on the job site at full cost.

The good news is that brake metal shop drawings aren’t complicated once you understand what you’re looking at. Here’s a practical guide to reading them, knowing what to verify, and understanding what to push back on before you put your stamp on it.

What a Brake Metal Shop Drawing Is Telling You

At its core, a brake metal shop drawing is the fabricator’s interpretation of what you ordered, translated into fabrication-ready information. It shows the dimensions of every leg, the angle of every bend, the gauge of the material, the finish, and the orientation.

Think of it like a recipe written back to you by the chef before they cook the meal. It’s their way of saying: “Here’s what we understood you to want.  Does this match what you actually need?” The shop drawing review is your opportunity to confirm that the recipe is right before anything goes into the oven.

When a shop drawing comes back from the fabricator, it’s not a formality. It’s a question waiting for your answer.

The Key Elements to Check

Dimensions:  Every single one. Confirm that each dimension matches what your field condition requires. A transposed digit or a misread dimension from the original order needs to be caught here, not when the bundle arrives on site.

For pieces that will be installed against existing conditions, make sure the dimensions on the drawing reflect the actual field measurements, not the design drawings. If your field condition differs from what the architect drew, the shop drawing should reflect the field, not the paper.

Bend angles. Most brake metal profiles involve 90-degree bends, but not all of them. When a profile such as a sloped sill flashing or a profile fitting a non-plumb surface, the bend angle matters and needs to be verified on the drawing. A bend that’s drawn at 85 degrees when the condition requires 80 degrees is going to create a gap that is visible and potentially a water management problem.

Gauge. Confirm that the gauge of metal or metal thickness shown on the drawing matches the gauge you specified and the gauge that is needed for your application.  If the project specifications call out a minimum gauge, verify that the drawing meets it. If gauge was not explicitly specified on the original order and the drawing defaults to something lighter than you might expect, it is worth a conversation before fabrication starts.
